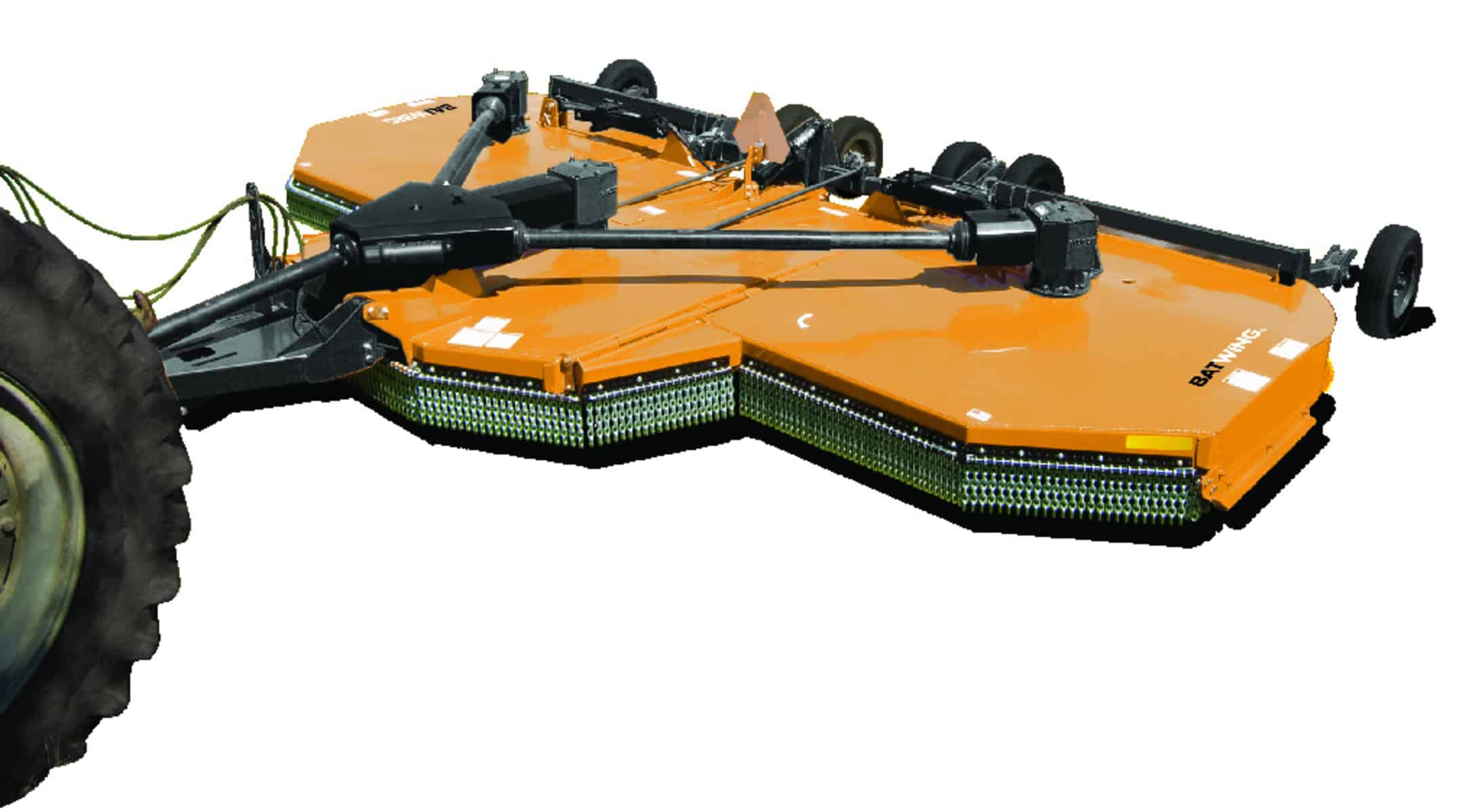

Woods BW20.71

Ideal for professional and contract cutting of heavy brush and trees up to 4 inches in diameter
Hinged metal gearbox shields open easily for maintenance
A 10-year gearbox warranty includes labor and seals under the Woods Cut Above™ Warranty for confidence in your purchase decision.
Woods Exclusive EZ-Change™ Blade System allows you to change blades in five easy steps with only a 3/4″ wrench.
Heavy-duty skid shoes prevent gouging and protect the deck
Strategically placed, welded baffles cut and distribute debris evenly
NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.

Tractor PTO HP	70-300
Hitch Type	Swivel clevis
Cutting Height (in)	2 to 15
Cutting Capacity Diameter (in)	4
Cutting Width (in)	240
Blade Tip Speed (fpm)	15,450 at 540 rpm; 16,300 at 1,000 rpm
Weight (lbs)	7,740
Deck Thickness (in)	.135 in upper and lower
Side Skirt Thickness (in)	0.25
Side Skirt Depth (in)	12.5
Transport Width (in)	99
Wing Flex Up/Down (degrees)	90 up, 22 down
Driveline Rating	CAT 6 CV main, CAT 5 wing
Splitter/Wing Gearbox Rating (hp)	275 / 225 *Gearbox horsepower ratings listed are based on Woods’ field testing
Output Shaft Diameter (in)	3
Tongue Weight (lbs)	2,700
Wheel Options	21 in. laminated, 25 in. severe-duty Ag, 25 in. severe-duty Ag foam-filled, 27 in. severe-duty Ag foam-filled, 29 in. used aircraft
Gearbox Warranty (yrs)	10
Options	Double row chain shielding; tandem spring arm suspension; pintel ring hitch; shredding kit; deck rings; spring-loaded wing lock-ups for narrow (118 Inches) transport width; LED lights
Suspension	Spring-loaded axles
Blade Overlap (in)	6
Blade Dimensions (in)	.5 x 4
Cutting Area Shielding	Standard chain shielding
Structure Warranty	2 years
