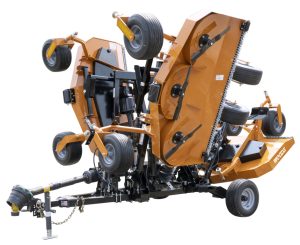

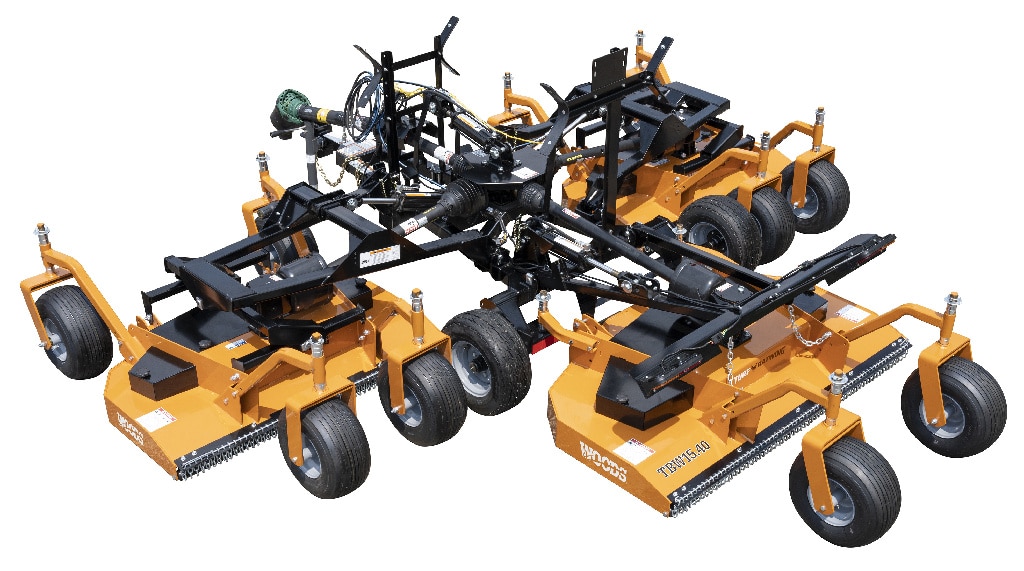

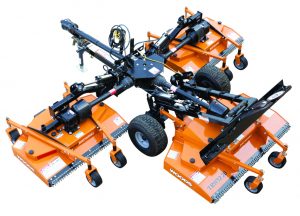

Woods TBW15.40

Professional

Every Turf Batwing® features the best-in-class cutting technology of the TurfKeeper® Series verified by independent testing.
Read Cut Quality Study.

High blade tip speeds and a high-torque belt design let you mow faster while maintaining superior cut quality.

10-year warranty including parts, labor, and seals.

Product Tier	Professional
Tractor PTO 540 rpm (HP)	35-80
Hitch	CAT 2, Drawbar
Hitch Adjustment	Floating clevis, multi-position
Cutting Width (in)	180
Cutting Height (in)	1.5 – 5.5
Deck Cut Widths (in)	Wing Deck 60 / Center Deck 72
Deck Overlap (in)	6
Blade Tip Speed (fpm)	18,100
Blade Spindle Bearings	Triple ball bearings
Transport H x L x W (in)	83.6 x 176 x 97
Transport Tires (in)	(2) 20.5 x 8-10
Gearbox Rating (HP)	100 splitter / 75 deck
Drive Type	Gearbox over v-belt
Drivelines	Main CAT 4 (CV) / Wing CAT 3
Caster Wheel Bearings	Tapered roller bearings
Caster Wheels (in)	(10) 18 x 9.5-8 pneumatic
Wing Deck Lift Cylinders	3 x 10 single-acting
Center Deck Lift Cylinders	3 x 8 single-acting
Trailer Frame Construction	4.0 x 4.0 x .25 square tube
Deck Thickness (in)	0.188
Blade Spindles	(9) ductile iron
Blade Dimensions (in)	(6) .25 x 2.5 x 21 (3) .25 x 2.5 x 25
Transport Lock	Automatic, manual release
Cut Height Adjustment	Spacer on caster
Caster Pivot Bushings	Yes
Belt Construction	HB-section, Aramid
Belt Adjustment	Spring-loaded idler w/bearing pivot
Light Kit	Standard
Hydraulic Remotes Required	1
Hydraulic Wing Unlock	Optional
Warranty Spindle/Gearbox	10 years
Structure Warranty	2 years
