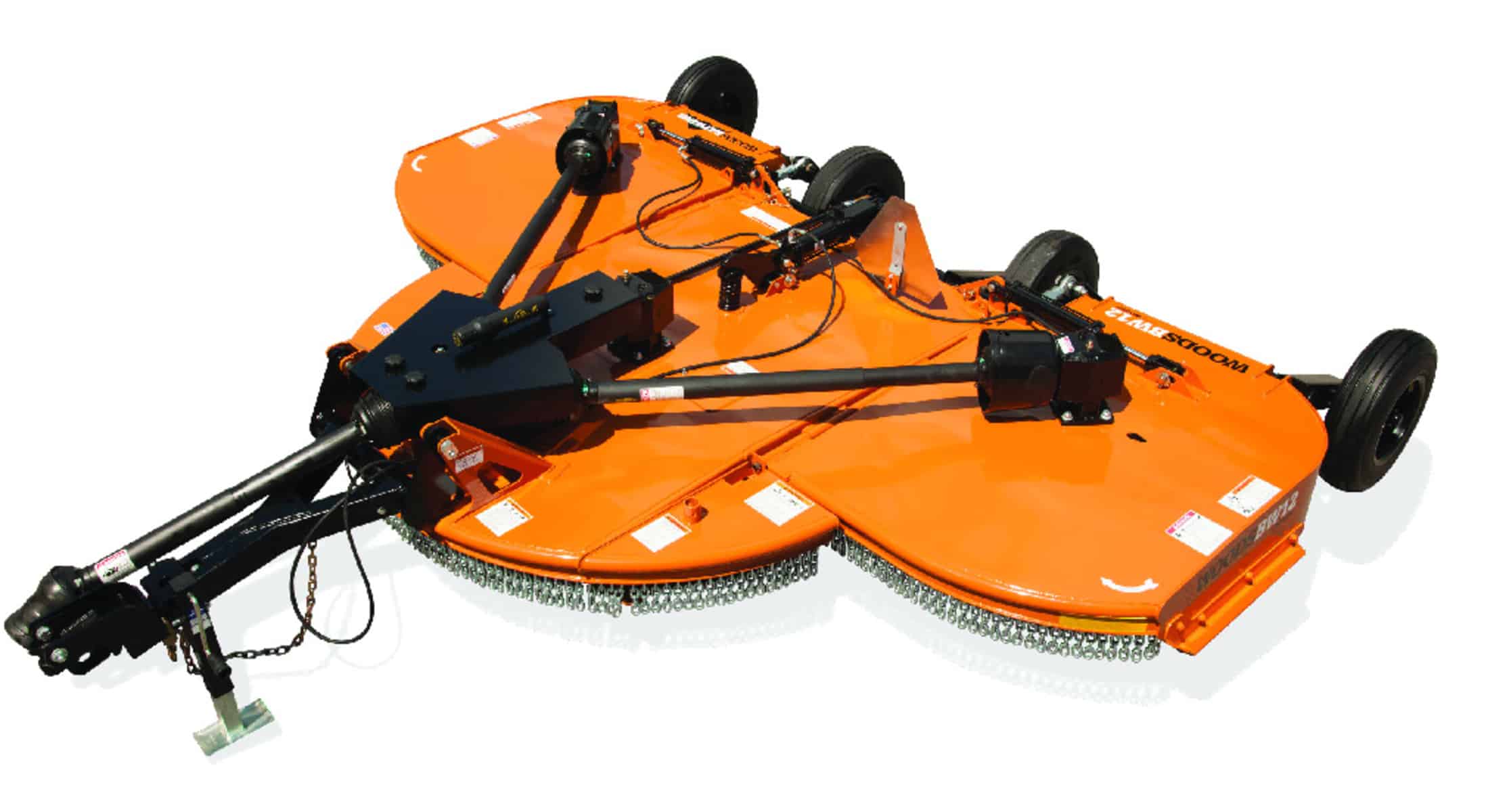

Woods BW12

Ideal for use on lower horsepower compact and utility tractors
Twelve gauge, high-strength steel and smooth, sloped deck provide durability for long life
Easy hook-up reduces preparation time and frustration
Fully baffled deck, ensures better distribution of cut material, and the performance you expect
A 10-year gearbox warranty includes labor and seals under the Woods Cut Above™ Warranty for confidence in your purchase decision.
Woods Exclusive EZ-Change™ Blade System allows you to change blades in five easy steps with only a 3/4″ wrench.
Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact
NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.

Tractor PTO HP	35 minimum
Hitch Type	Swivel clevis
Cutting Height (in)	2 to 12
Cutting Capacity Diameter (in)	1.5
Cutting Width (in)	144
Blade Tip Speed (fpm)	14,300 center; 14,900 wing
Weight (lbs)	2,450
Deck Thickness (in)	.105 (12 ga)
Side Skirt Thickness (in)	.179 (7 ga)
Side Skirt Depth (in)	11
Transport Width (in)	96
Wing Flex Up/Down (degrees)	90 up, 22 down
Driveline Rating	CAT 4 CV main, CAT 3 wing
Splitter/Wing Gearbox Rating (hp)	160 / 75 *Gearbox horsepower ratings listed are based on field testing.
Output Shaft Diameter (in)	1.57
Tongue Weight (lbs)	750
Wheel Options	21 inch laminated; 24 inch severe-duty Ag
Gearbox Warranty (yrs)	10
Options	Available in Woods Orange, Green, Orange, Blue
Suspension	Spring on center section
Blade Overlap (in)	6
Blade Dimensions (in)	.5 x 4
Cutting Area Shielding	Standard chain shielding
Structure Warranty	2 years
